Advantage Circuits, Ltd. Batteries

Polymer-Lithium-Ion Batteries -3200 mAh

3.7 V Nominal

All of our batteries feature integrated protection PCB to insure protection from...

1. Over-Voltage

2. Over-Discharge

3. Short Circuit

We proudly carry the latest in Polymer Lithium Ion battery technology. This new evolution of Lithium technology is made thinner by packing with aluminum laminate, this advanced 4.2V graphite anode technology excels over ordinary Polymer Lithium Ion batteries in high-rate discharge and low temperature performance. These cells are safety approved from CE and UL.

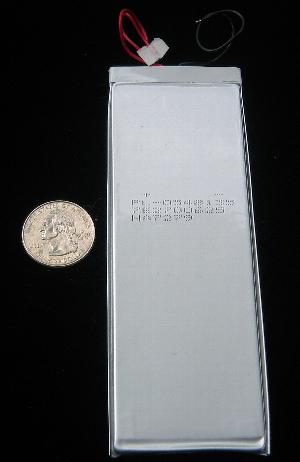

   Model ED5048125-H01 3200 mAh

This battery is our best value when price per mAh is considered. The standard discharge current is 640mA (1600 mA maximum).

3200 mAh DATASHEET

This battery Features -

Integrated Protection Circuitry

5.0mm X 48.0mm X 135.0mm

4.2V full charge, 3.7V working voltage

Wire termination

2.3 ounces

3200 mAh batteries sold in packs of three batteries.

$31.50 for 3 units ($10.50 each)

Currently these batteries are not available for small quantity distribution. Please contact us for volume pricing of these cells!

Polymer Lithium Ion Batteries - 2000 mAH

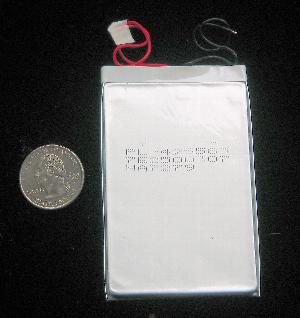

Model ED425585-H01 2000 mAH - 4A Continuous Discharge!

This battery can perform at a 2C discharge rate (4000 mA) without damaging the cell lifetime! Higher discharge rates are possible for short amounts of time. Please see the product datasheet fore more information.

2000 mAh DATASHEET

This battery features:

Integrated protection circuitry

2C maximum discharge rate

4.0mm X 55.0mm X 85.0mm

4.2V full charge, 3.7V working voltage

Wire termination

1.4 ounces

2000 mAh batteries sold in packs of four batteries.

$36.00 for four units($9.00 each)

Currently these batteries are not available for small quantity distribution. Please contact us for volume pricing of these cells.

For distribution of this product or to purchase via purchase order contact us at Sales@advantagecircuits.com
